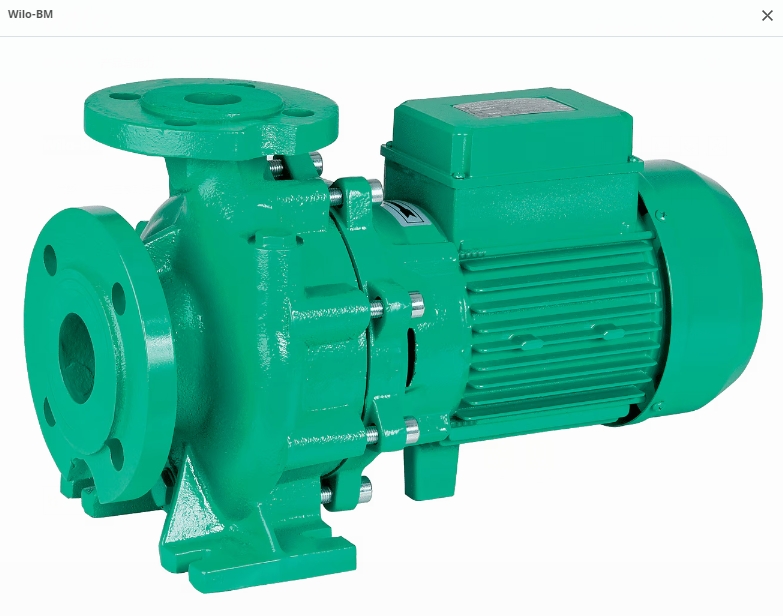

ODM 16 bar Heating Coolant Circulation Pump Water Systems Wilo BM

  • 1
  • 2
  • 3

Brand Name : Wilo

Model Number : Wilo-BM

Place of Origin : Germany

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Delivery Time : 5-8 weeks

Packaging Details : Standard Export Plywood Case or Carton

Head : Up to 160 m

Temperature Range : -20°C to 120°C

Speed : Up to 3600 rpm

Power Range : Up to 500 kW

Flow Rate : Up to 5000 m3/h

Maximum Pressure : 16 bar

Contact Now

Design

Glanded pump in block design with flange connection

Application

For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and chilled water without abrasive substances in heating, chilled water and cooling water systems.

Technical data

  • Minimum efficiency index (MEI) ≥ 0.4
  • Permissible temperature range of -10 °C to +90 °C
  • Mains connection 3~400 V, 50 Hz
  • Protection class IP55
  • Nominal diameter DN 32 to DN 125
  • Max. operating pressure 10 bar

Materials

  • Pump housing BM-B: Bronze CuSn10
  • Pump housing BM-S: Cast stainless steel 1.4408
  • Impeller BM-B: Bronze CuSn 10
  • Impeller BM-S: Cast stainless steel 1.4408
  • Shaft: 1,4362
  • Mechanical seal: Q1Q1VGG

Construction

  • Single-stage glanded centrifugal pump in compact block design made of cast stainless steel
  • Directly flanged three-phase current motor and one-piece motor pump shaft
  • Mechanical seal
  • Feet on pump housing and motor

Scope of delivery

  • Pump
  • Installation and operating instructions

Options

  • Version ...-K3 with PTC thermistor sensor (for a surcharge)
  • Other mechanical seals on request
